Dudek Nucleon XX

$3,650.00



Stable, Safe, & Agile

This is yet another piece in a long line of classic reflex paragliders, from Traper through Action and ReAction, up to Nucleon and Nucleon WRC. This model is dedicated for the cross-country pilots, middle echelon of competitors and weekend sight-seers. It is stable, safe, agile and very agreeable in steering.

Clear
SKU: D-Nucleon Category:

The Nucleon XX, like the WRC, was manufactured in Flexi Edge technology, offering better leading edge aerodynamics. Another key feature is the Shark Nose profile, guaranteeing high pressure in cell intakes area (=even better safety) in full speed/angle of attack range. Also the 3D ballooning was taken into account even more precisely than earlier wings.

Due to these and other solutions the quality of launch was improved and the leading edge is even stiffer, offering further protection against collapses. As another effect we’ve got increased lift, so the canopy is able to carry bigger loads. As a direct result all sizes are somewhat smaller, up to 3 qm per given pilot weight.

For the first time in this category, we’ve decided to offer the 2D steering as standard feature. This includes precisely designed progression, so the paraglider can be steered surely and effortlessly. At high speeds, the paraglider can be very precisely steered with new, improve, light TST handle.

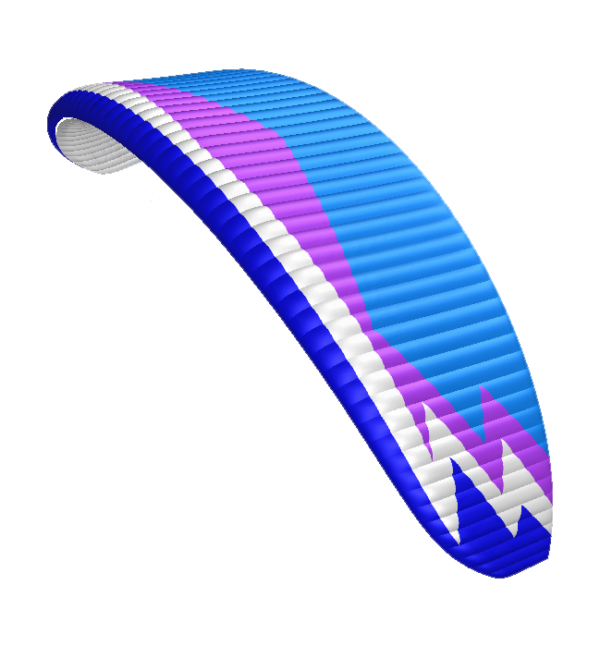

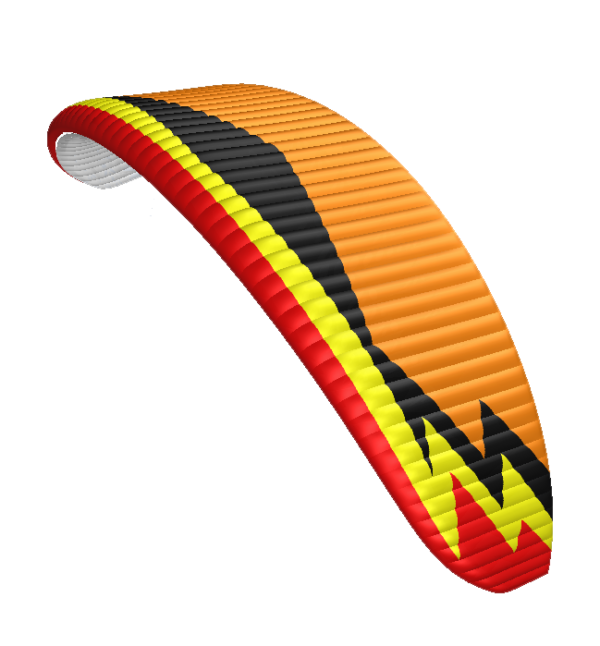

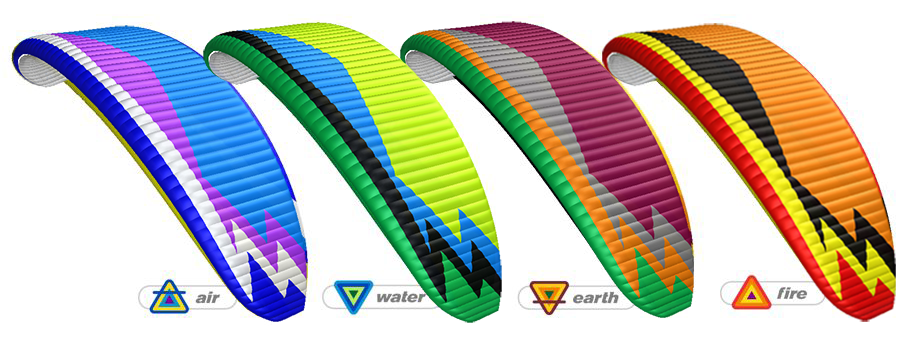

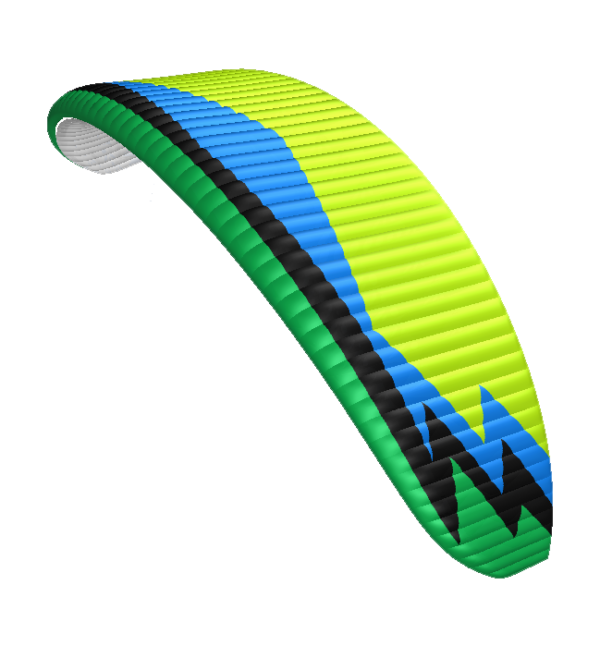

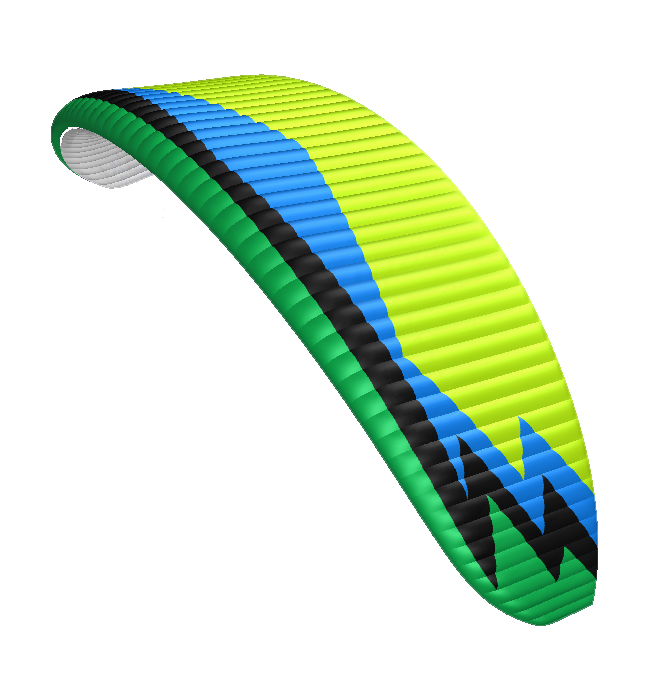

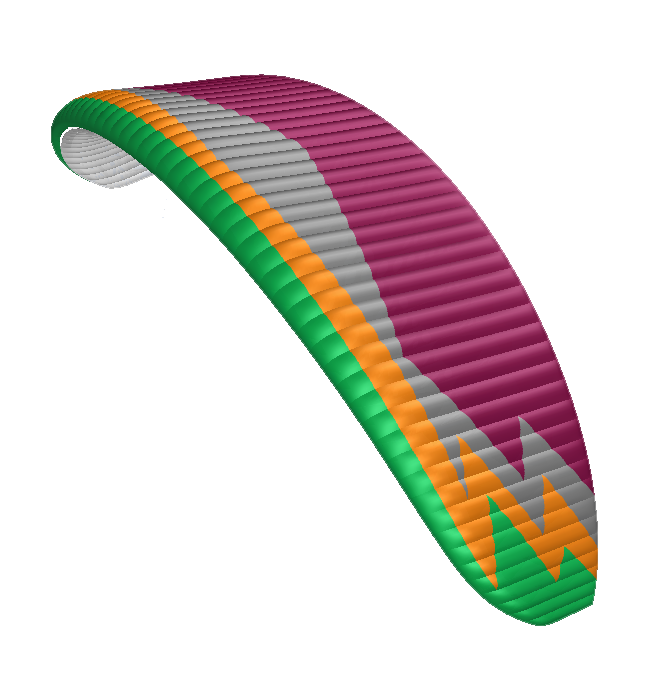

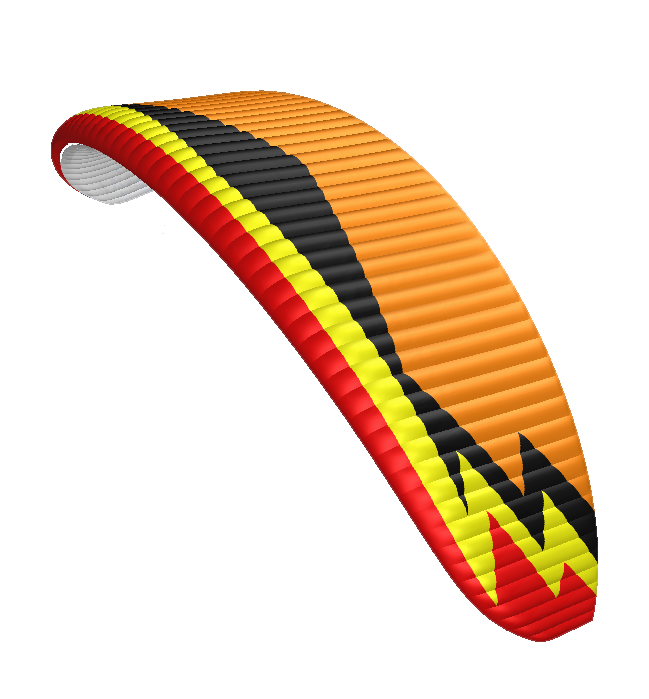

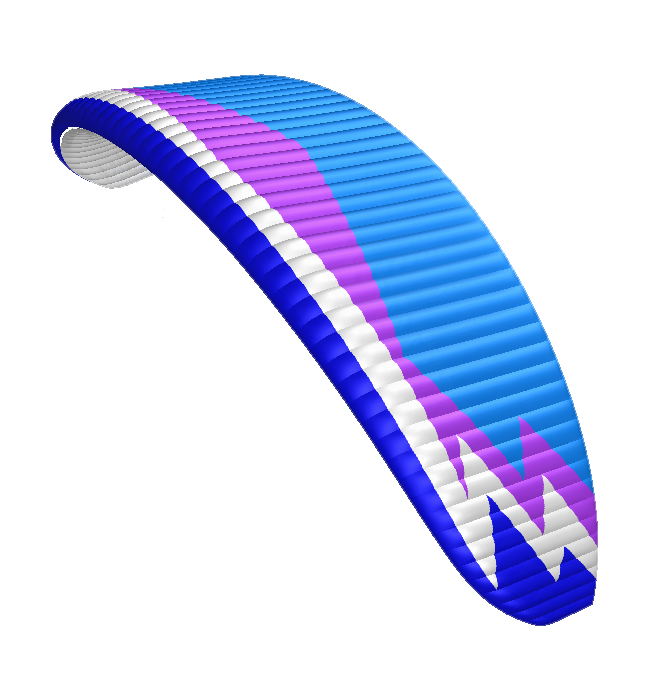

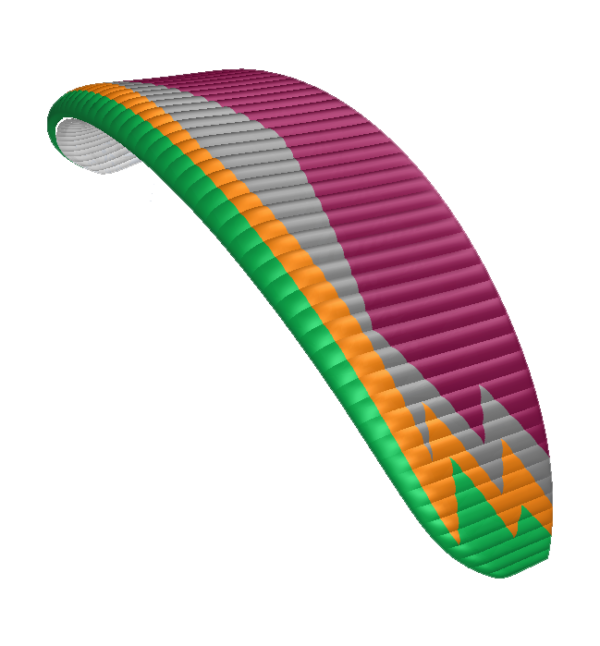

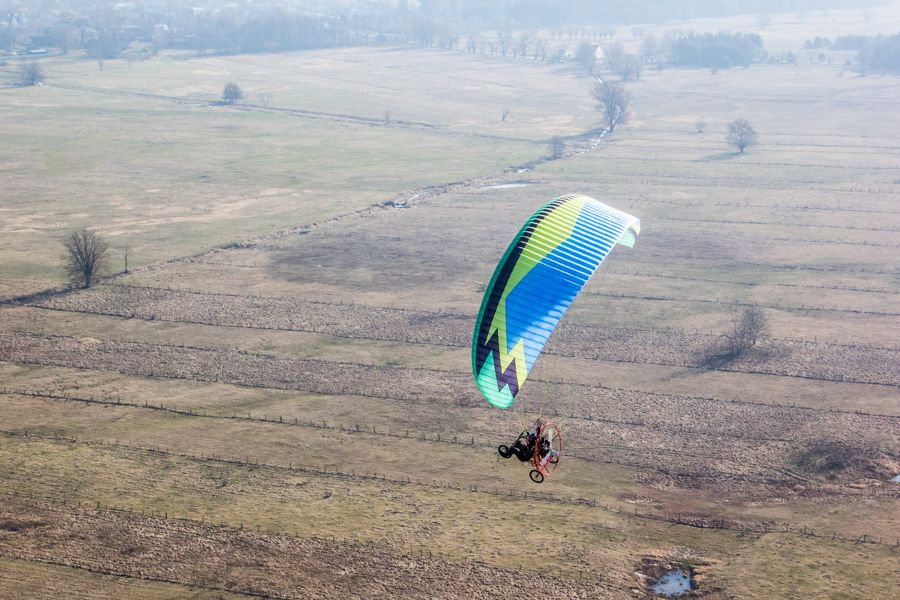

Nucleon XX sports anniversary colour design of the four elements – Air, Water, Earth and Fire. It will be certified for paramotoring in the DGAC scheme.

COMPLETE PARAGLIDER KIT YOU RECEIVE INCLUDES:
  • MotoBag (backpack for tight canopy packing, without harness)
  • DewBag (quickpack)
  • Transport bag including compression strap.
  • Easy Catch speedbar.
  • pouch with documents and repair kit (self-adhesive cloth, spare line)
  • wind ribbon and windsock
  • small gifts
Size 20 22 24 26 28
DGAC approval YES YES YES YES YES
Cell number 60
Surface flat [m2] 20.00 22.00 24.,00 26.00 28.00
Surface projected [m2] 17.08 18.79 20.49 22.20 23.91
Wingspan flat [m] 10.58 11.10 11.59 12.07 12.52
Wingspan projected [m] 8.39 8.80 9.20 9.57 9.93
Apect ratio flat 5.60
Apect ratio projecte 4.12
Sink rate [m/s] min = 1.2  +/- 0.2
Speed [km/h] min = 26 ; trim = 38-50 ; max = 64 +/- 3
Longest chord [mm] 2340 2454 2563 2668 2769
Shortest chord [mm] 575 603 630 656 681
Suspension length [m] 6.51 6.82 7.13 7.42 7.7
Total lines length [m] 287.51 302.07 315.98 329.33 342.17
Pilot take-off weight DGAC [kg] 75 – 110 85 – 120 95 – 130 105 – 145 115 – 160
Canopy weight [kg] 5.5  5.9  6.3 6.7  7.1
Lines Edelrid A-8000U: 050 / Liros TSL: 090 & 140 & 190 & 280
Cloth Porcher Sport 38 g/m2, Dominico tex 34 g/m2, Porcher Sport Hard 40 g/m2, SR Scrim, SR Laminate 180 g/m2
